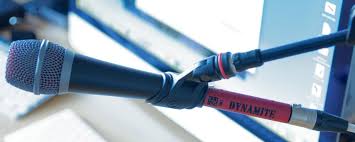

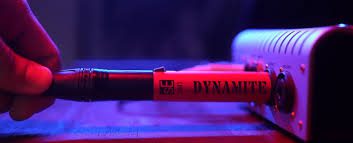

sE DM1 DYNAMITE

The DM1 DYNAMITE is an ultra-slim active onboard preamp that fits seamlessly between your microphone and mic preamp, providing a whopping +28dB of clean, transparent gain, for all dynamic and passive ribbon mics – ideal for podcasting, recording or live sound.

REQUIREMENTS
Input: passive microphone (ribbon / dynamic).
Output: preamp / mixer / audio interface providing 48V phantom power.

RESTRICTIONS
Not suitable for microphones that need phantom power (condenser microphones, active ribbon microphones).

STANDARDS
Frequency Range: 10 Hz – 120,000 Hz (-0.3 dB).
Gain: 28 dB (1kOhms load)
Maximum output level (0.5% THD): 8.3 dBV (2.6 V)
Output noise level: 9 µV (JIS-A)
Power supply: 48 Volts according to IEC 61938
Electrical impedance: 135 Ohms
Recommended load resistance: > 1k Ohms
Current consumption: 3.0 mA
Connectivity: 3-pin XLR male / female connector
Dimensions: Diameter: 19 mm, Length: 95.5 mm
Weight: 80g
